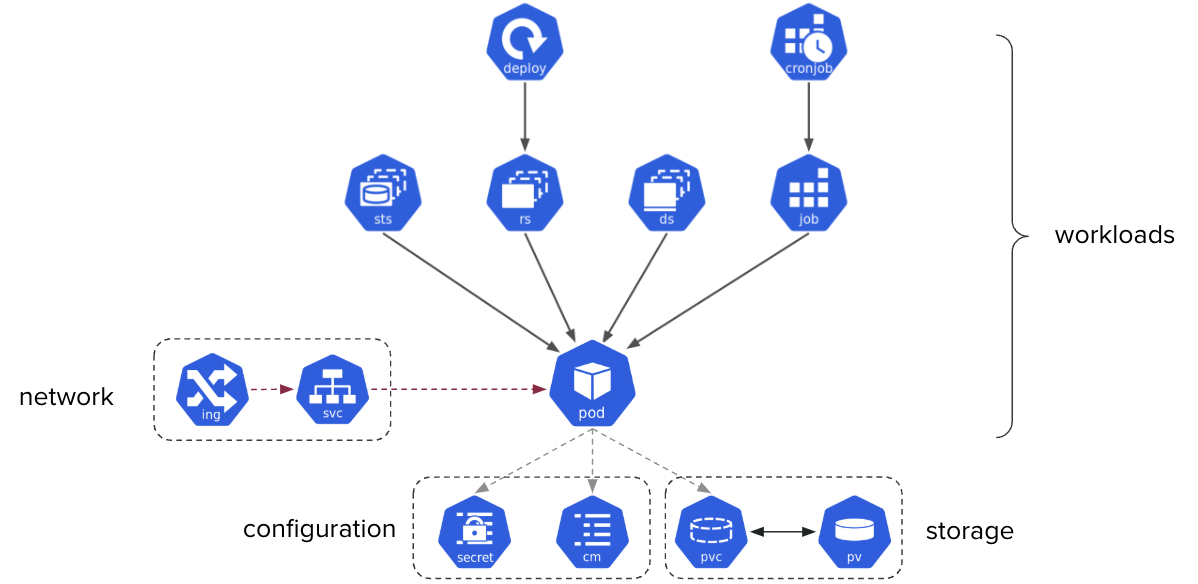

This section is a refresher that provides an overview of the primary Kubernetes resources related to workloads. At the end of this section, please complete the exercises to put these concepts into practice.

Pod

Purpose

A Pod is the smallest workload unit in Kubernetes. It’s an abstraction containing one or more containers in charge of running applications.

Sample specification

Below is the simplest version of a Pod, this one runs a container based on the stefanprodan/podinfo image.

apiVersion: v1
kind: Pod
metadata:
  name: podinfo
spec:
  containers:
  - name: podinfo
    image: stefanprodan/podinfo

We create the Pod with the usual kubectl command from this YAML definition.

kubectl apply -f pod.yaml

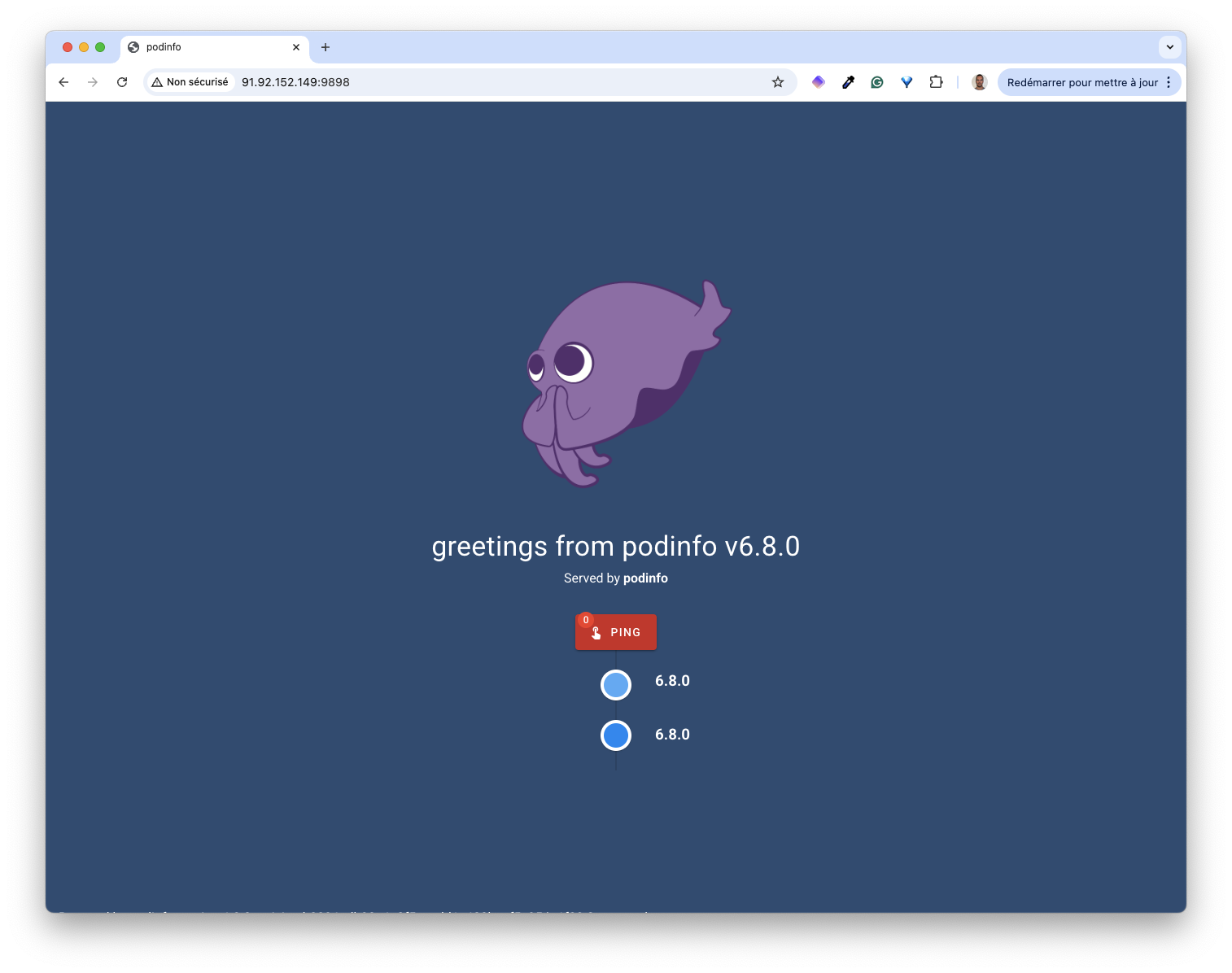

As a Pod does not expose the application it is running (this is the role of the Service resource, which we’ll detail later in this workshop), we can access the application using a port-forward command as follows.

port-forward podinfo 9898:9898 --address 0.0.0.0

This command opens port 9898 on the machine it is run from and forwards traffic to port 9898 in the Pod. The –address 0.0.0.0 flag ensures this port is available on all the network interfaces of the host machine (otherwise limited to localhost).

Enhanced specification

The simple specification we saw above is too simple and must not be run in a production environment. Below is a more complete specification, including additional properties:

• resources, which specifies the requirements and limits in terms of CPU and RAM
• livenessProbe, which ensures the application is healthy
• readinessProbe, which ensures the application is ready to accept requests
• securityContext, which adds security constraints

apiVersion: v1
kind: Pod
metadata:
  name: podinfo
  labels:
    app: podinfo
spec:
  containers:
  - image: stefanprodan/podinfo:6.1.0
    name: podinfo
    resources:
      requests:
        cpu: 50m
        memory: 64Mi
      limits:
        cpu: 50m
        memory: 64Mi
    livenessProbe:
      httpGet:
        path: /healthz
        port: 9898
      initialDelaySeconds: 3
      periodSeconds: 3
    readinessProbe:
      httpGet:
        path: /readyz
        port: 9898
      initialDelaySeconds: 3
      periodSeconds: 3
    securityContext:
      allowPrivilegeEscalation: false
      readOnlyRootFilesystem: true
      runAsUser: 10000
      runAsNonRoot: true
      seccompProfile:
        type: RuntimeDefault
      capabilities:
        drop:
        - ALL

Deployment

Purpose

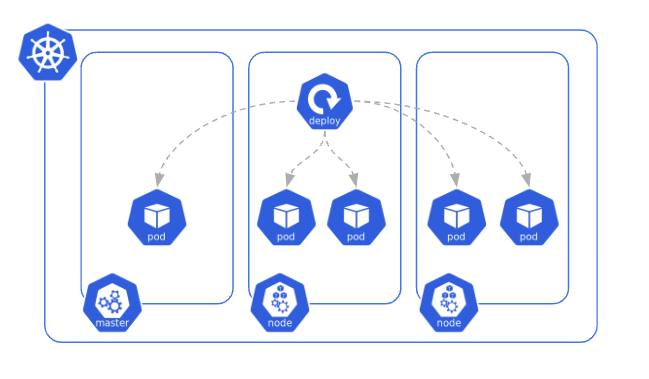

A Deployment runs a given number of identical Pods across the cluster. The number of replicas can easily be scaled (manually or with an HPA).

Sample specification

The following specification defines a Deployment in charge of 5 Pods based on the nginx:1.24 image.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: www
spec:
  replicas: 5
  selector:
    matchLabels:
      app: www
  template:
    metadata:
      labels:
        app: www
    spec:
      containers:
      - name: www
        image: nginx:1.24
        ports:
        - containerPort: 80

DaemonSet

Purpose

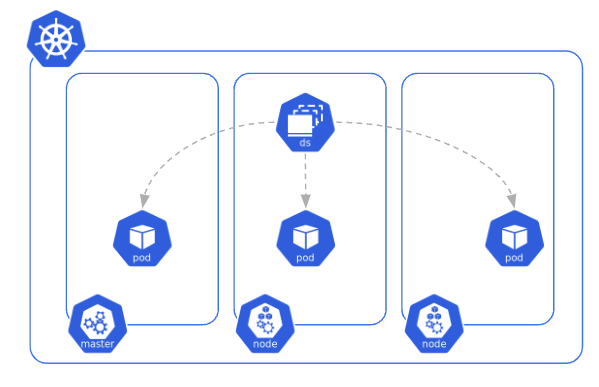

A DaemonSet ensures a Pod (usually an agent) is running on each cluster’s Node.

Sample specification

The following specification defines a DaemonSet in charge of running a fluentbit Pod on each node of the cluster.

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: fluent-bit
spec:
  selector:
    matchLabels:
      k8s-app: fluent-bit-logging
  template:
    metadata:
      labels:
        k8s-app: fluent-bit-logging
    spec:
      containers:
      - name: fluent-bit
        image: fluent/fluent-bit:1.5
        volumeMounts:
        - name: varlog
          mountPath: /var/log
        - name: varlogcontainers
          mountPath: /var/log/containers
      volumes:
      - name: varlog
        hostPath:
          path: /var/log
      - name: varlogcontainers
        hostPath:
          path: /var/log/containers

Job

Purpose

A Job allows running several Pods in parallel or sequence. This must not be used to run long-running tasks, like application servers.

Sample specification

The following specification defines a Job running 3 Pods in parallel to train a machine learning model.

apiVersion: batch/v1
kind: Job
metadata:
  name: training
spec:
  completions: 3
  parallelism: 3
  template:
    spec:
      restartPolicy: OnFailure
      containers:
      - name: training
        image: org/ml-training:1.2

CronJob

Purpose

A CronJob is in charge of launching Jobs according to a schedule, similar to the Linux crontab.

Sample specification

The following specification defines a CronJob in charge of running a backup Job every 6 hours.

apiVersion: batch/v1
kind: CronJob
metadata:
  name: dump
spec:
  schedule: "0 */6 * * *"
  jobTemplate:
    spec:
      template:
        spec:
          restartPolicy: OnFailure
          containers:
          - name: dump
            image: org/db-dump:2.3

ConfigMap

Purpose

A ConfigMap is not used to run Pods, unlike the resources above. Instead, we use it to configure the application running in Pods. A ConfigMap contains files or key/value pairs that we provide to the containers either:

• via environment variables
• or mounted as a volume

Sample specification

The following specification defines a ConfigMap containing a nginx configuration file.

apiVersion: v1
kind: ConfigMap
metadata:
  name: nginx-config
data:
  nginx.conf: |
    user nginx;
    worker_processes 4;
    pid /run/nginx.pid;
    events {
       worker_connections 768;
    }
    http {
      server {
          listen 80;
          location / {
              return 200 'Hello from NGINX!';
          }
      }
  }

Usage in a Pod

The following specification illustrates how to use this ConfigMap in a Pod. The nginx.conf file is made available at /etc/nginx/config.conf in the Pod’s container.

apiVersion: v1
kind: Pod
metadata:
  name: www
spec:
  containers:
  - name: proxy
    image: nginx:1.24
    volumeMounts:
    - name: config
      mountPath: "/etc/nginx/"
  volumes:
  - name: config
    configMap:
      name: nginx-config

Secret

Purpose

A Secret is very similar to a ConfigMap except that it is used to handle sensitive information (credentials, ssh keys) as it can be encrypted. As for ConfigMap, a Secret contains files or key/value pairs that we can provide to the containers either:

• via environment variables
• or mounted as a volume

When viewing a Secret’s specification, we can see base64 encoded (not encrypted) content.

Sample specification

The following specification defines a Secret containing the password of a Postgres database.

apiVersion: v1
kind: Secret
metadata:
   name: postgres-pass
data:
   password: bXlzZWN1cmVwYXNzd29yZAo=
type: Opaque

Usage in a Pod

The specification below illustrates how to use a Secret in a Pod. The Secret’s unique key is available as an environment variable in the Pod’s container.

apiVersion: v1
kind: Pod
metadata:
  name: postgres
spec:
  containers:
  - name: postgres
    image: postgres:17.5-alpine
    env:
    - name: POSTGRES_PASSWORD
      valueFrom:
        secretKeyRef:
          name: postgres-pass
          key: password

Namespaces

Namespaces are Kubernetes resources that allow grouping resources. The image below illustrates the Namespaces created by default.

As Namespaces do not offer strong isolation, specific resources must be applied to a Namespace to limit CPU, RAM usage, and network rules allowed within and across Namespaces. Those resources are:

• ResourceQuota
• Limits
• NetworkPolicy

You can now jump to the Exercises part to learn and practice the concepts above.
